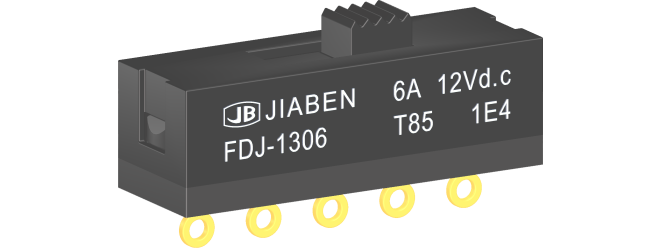

FDJ-1306

FDJ, FDM滑动(推拉)开关

FDJ, FDM series Slide (Push-pull) Switches

产品描述Product description

FDJ, FDM系列是迷你型的小型推拉开关,也叫滑动开关,应用于各类需要微电流档位控制的电器,如:迷你型螺丝起子、充电灯等。
FDJ, FDM series are mini type slide switches, commonly for used in micro current appliances such as Mini Screwdrivers, Rechargeable Lights, etc.

技术数据Technical data

→机械耐久寿命 Mechanical life endurance≥5E4
→电气耐久寿命 Electrical life endurance≥1E4
→最大电流 Max. current6A
→接触电阻 Contact resistance≤30m Ohm
→绝缘电阻 Insulation resistance≥7M Ohm
→基本介电强度 Dielectric strength of function500V
→加强介电强度 Diele ctric strength of reinforced500V
→环境温度 Ambient temperature0°C~85°C
→阻燃等级 FlammabilityUL 94V-0
→防护等级 Protection typeIP40
→适用于II类防护器具 Suitable for appliances of protection class II

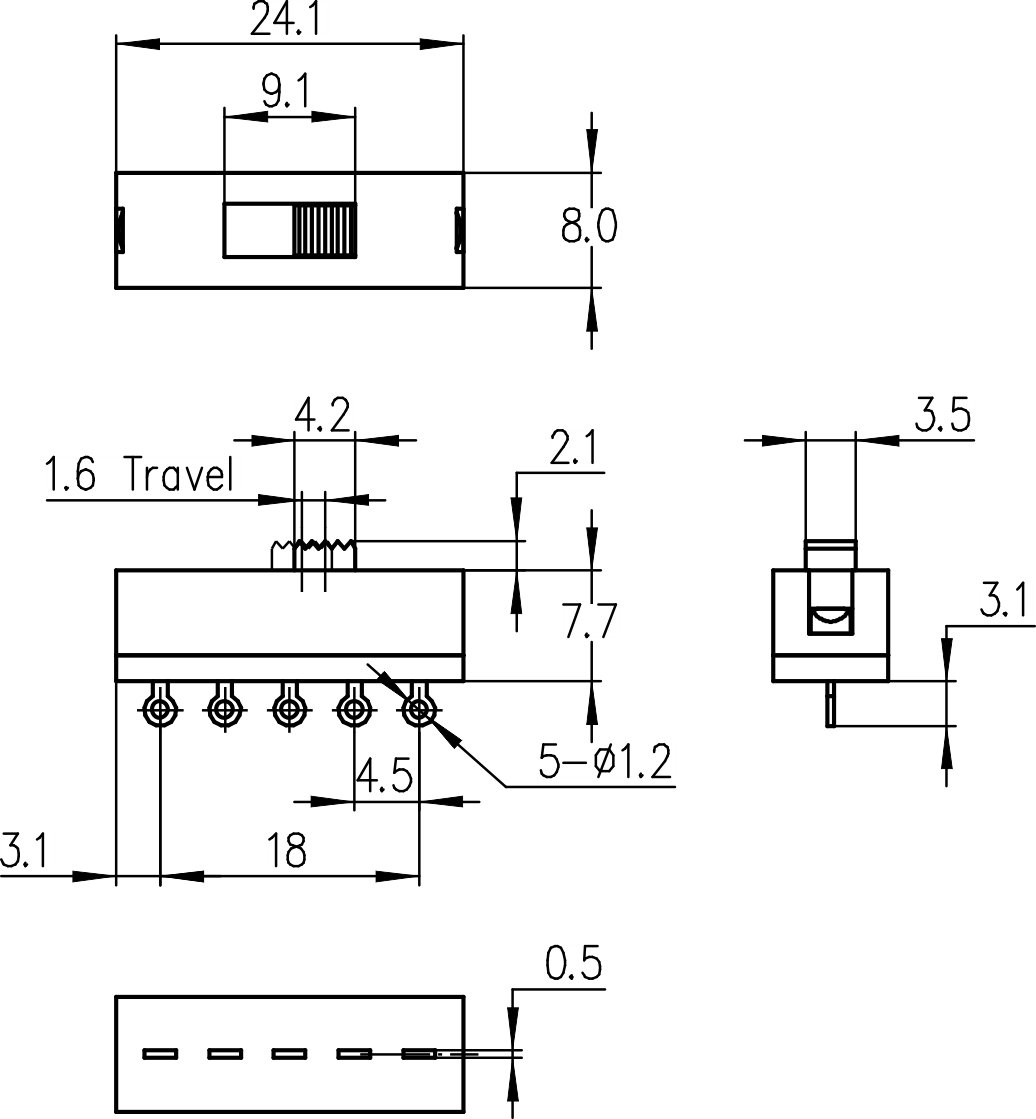

端子类型Terminals

◆输入端/输出端 Input side/Output side:
→焊接端子 Soldering terminals φ=1.2mm
→线路板焊接端子 PCB Soldering terminals 1.0×0 8mm

电气参数和认证 Electric Rating and Certification
